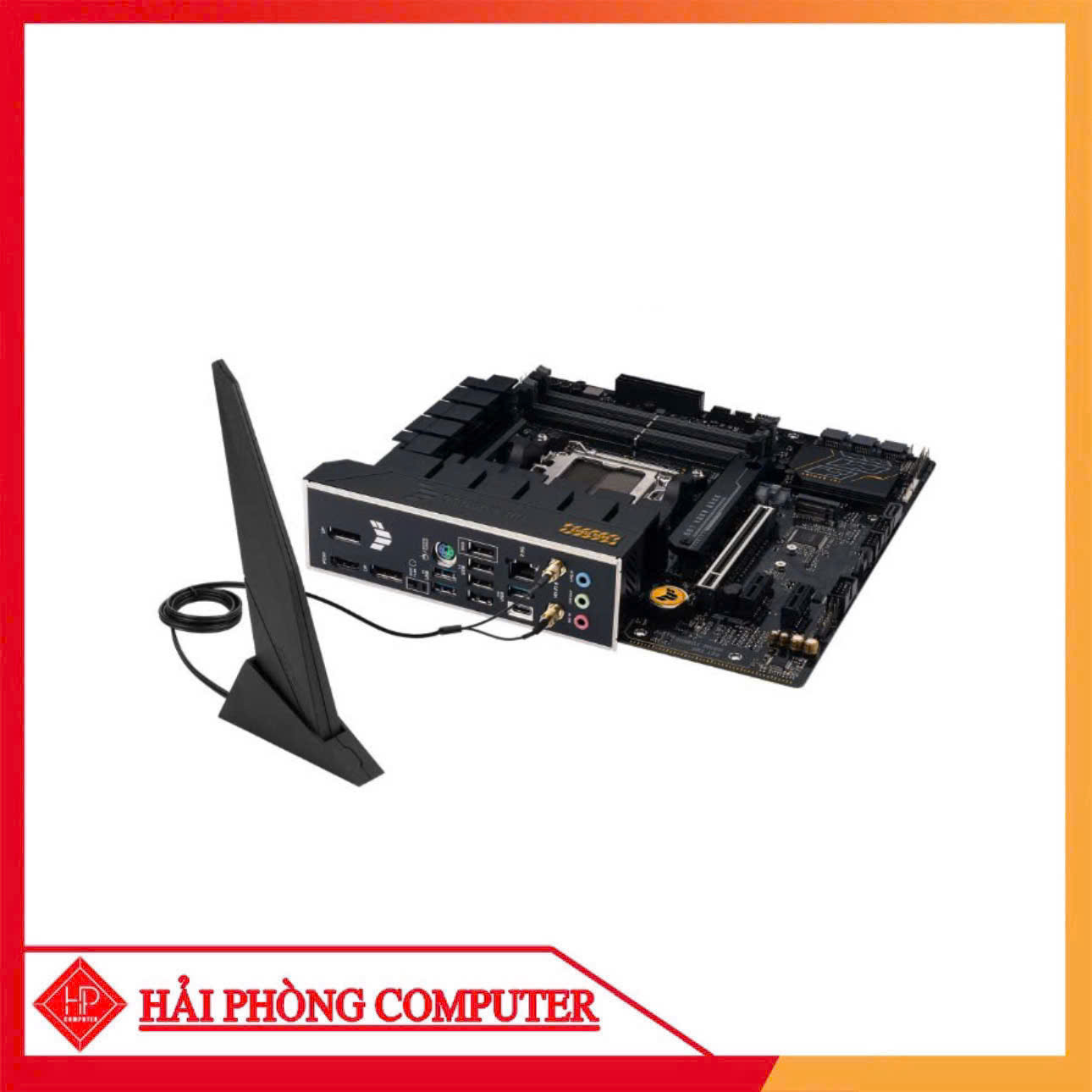

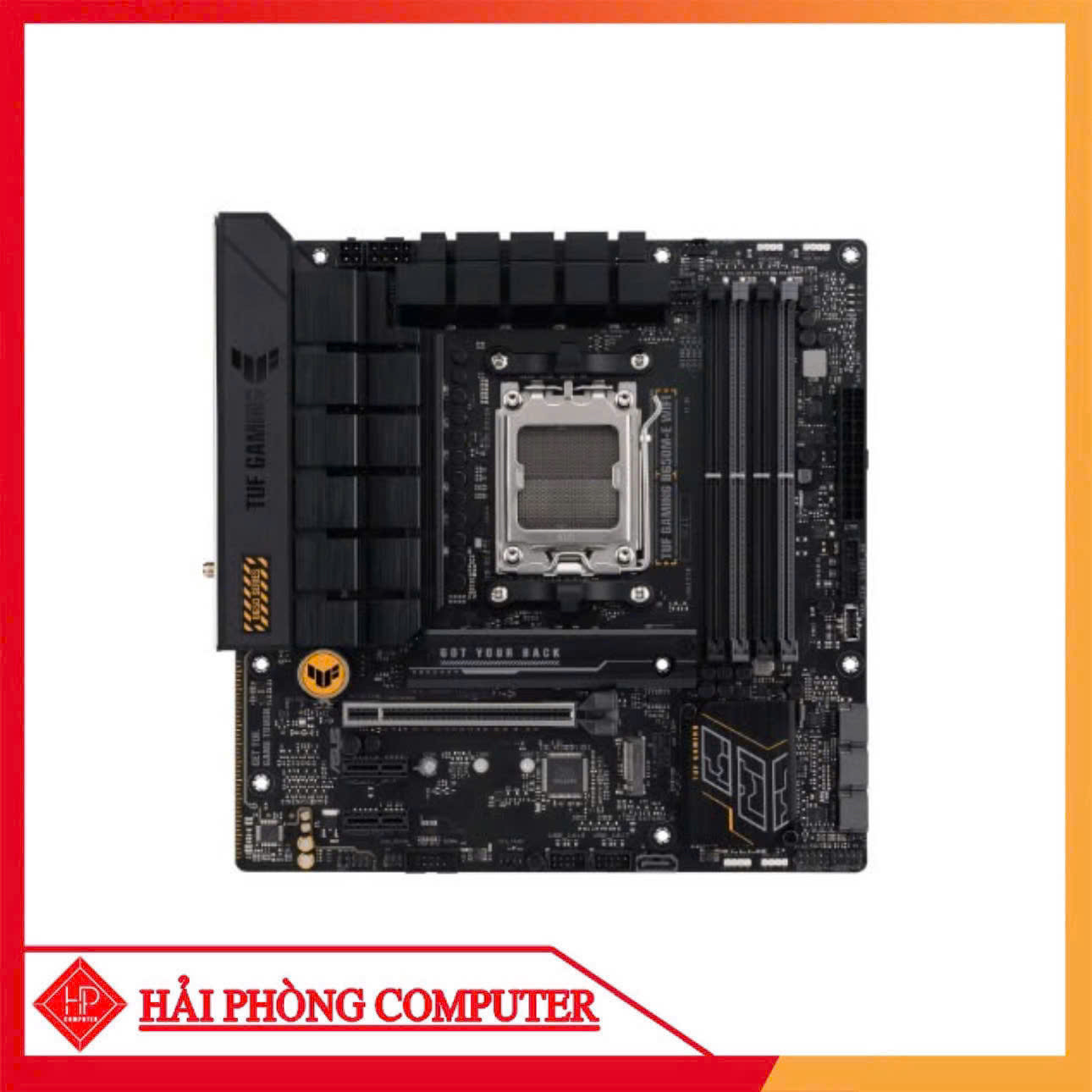

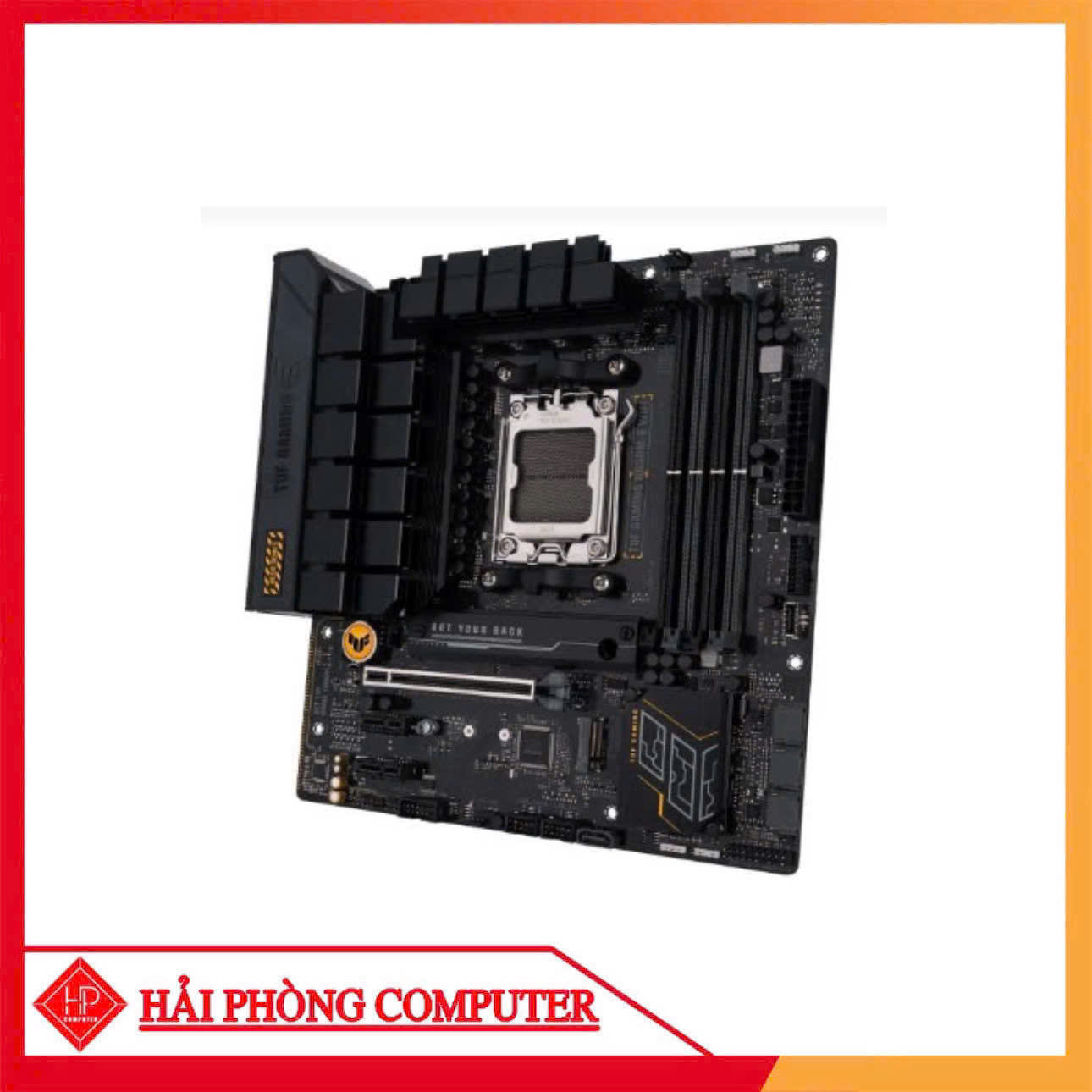

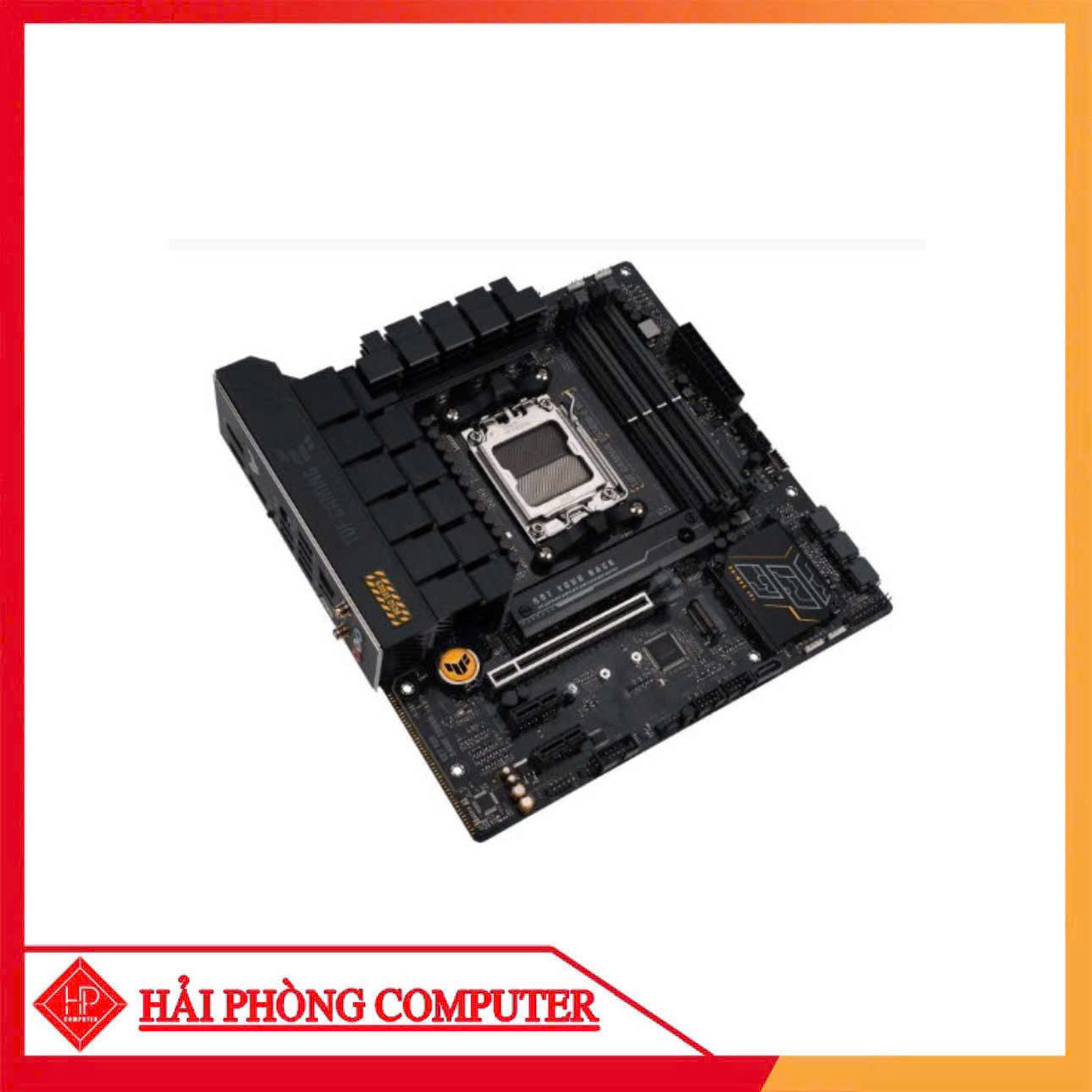

Mainboard ASUS TUF GAMING B650M-E WIFI là bo mạch chủ tầm trung thuộc dòng TUF Gaming nổi tiếng của ASUS, được thiết kế đặc biệt dành cho các game thủ sử dụng CPU AMD Ryzen thế hệ mới. Sở hữu chipset B650 hiện đại cùng khả năng hỗ trợ DDR5, PCIE 5.0, và WiFi 6, sản phẩm mang đến hiệu suất ổn định, khả năng kết nối mạnh mẽ và độ bền vượt trội.
Bo mạch chủ sử dụng chipset AMD B650, hỗ trợ dòng CPU Ryzen 7000 series (Socket AM5), mang đến hiệu năng mạnh mẽ cho các tác vụ gaming, đồ họa và xử lý đa nhiệm.
Mainboard hỗ trợ bộ nhớ DDR5 với xung nhịp lên đến 6400+ MHz (OC), cho tốc độ truyền tải dữ liệu nhanh hơn, cải thiện hiệu năng tổng thể cho hệ thống.
Với khe PCIe 5.0 x16, người dùng có thể tận dụng tối đa hiệu suất của các dòng card đồ họa thế hệ mới, sẵn sàng cho nhu cầu nâng cấp trong tương lai.
Mainboard tích hợp sẵn WiFi 6 (802.11ax) và LAN 2.5Gb, mang lại trải nghiệm mạng không dây và có dây siêu nhanh, ổn định khi chơi game online hoặc livestream.
Dòng TUF nổi tiếng với thiết kế chắc chắn, linh kiện đạt chuẩn quân đội, tản nhiệt tối ưu và độ bền cao – lý tưởng cho những hệ thống hoạt động liên tục, cường độ cao.
ASUS trang bị cho bo mạch chủ các công cụ như Armoury Crate, AI Cooling, và UEFI BIOS dễ sử dụng, hỗ trợ ép xung, quản lý hệ thống và cập nhật driver nhanh chóng.
Mã hàng | Tên hàng | Bảo hành |
---|---|---|
Model | TUF GAMING B650M-E WIFI | |
CPU hỗ trợ | AMD | |
Chipset | AMD B650 | |
RAM hỗ trợ | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory | |
Khe cắm mở rộng | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots | |
Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |

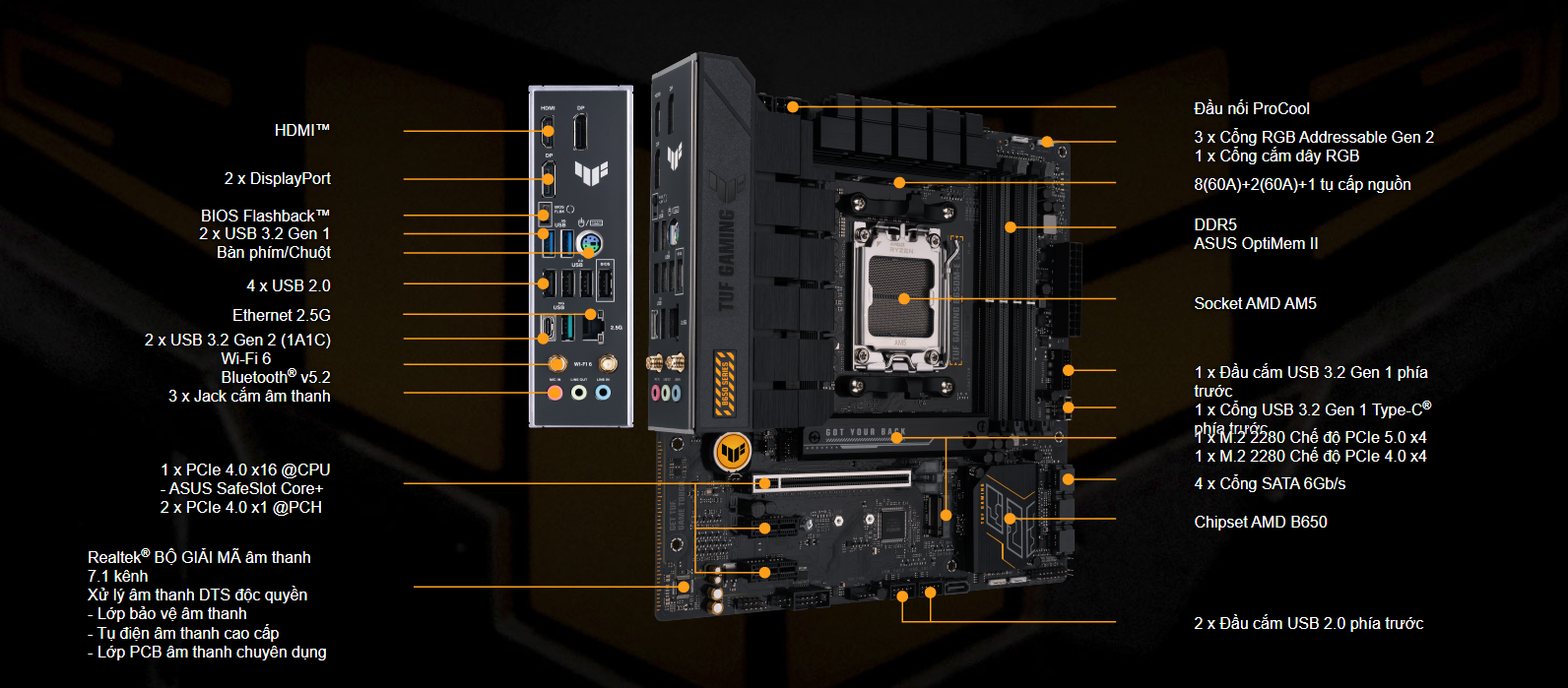

Cổng kết nối (Internal) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function | |
Cổng kết nối (Back Panel) | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port | |
LAN / Wireless | Wi-Fi 6 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Wi-Fi 6 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* 1 x Realtek 2.5Gb Ethernet TUF LANGuard | |
Kích cỡ | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | |
