| Mã hàng |
Tên hàng |
Bảo hành |
| Tên Hãng |
GIGABYTE |
- |
| Model |
Z690M AORUS ELITE DDR4 |
- |
| CPU hỗ trợ |
Intel |
- |
| Chipset |
Z690 |
- |
| RAM hỗ trợ |
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture |
- |
| - |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
- |
| - |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
- |
| - |
Support for Extreme Memory Profile (XMP) memory modules |
- |
| Khe cắm mở rộng |
1 x PCI Express x16 slot, running at x16 (PCIEX16) |
- |
| - |
1 x PCI Express x16 slot, running at x4 (PCIEX4) |
- |
| Ổ cứng hỗ trợ CPU |
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
- |
| Chipset |
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
- |
| - |
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
- |
| - |
6 x SATA 6Gb/s connectors |
- |
| Cổng kết nối (Internal) |
1 x 24-pin ATX main power connect |
- |
| - |
1 x 8-pin ATX 12V power connector |
- |
| - |
1 x 4-pin ATX 12V power connector |
- |
| - |
1 x CPU fan header |
- |
| - |
1 x water cooling CPU fan header |
- |
| - |
3 x system fan headers |
- |
| - |
1 x system fan/water cooling pump header |
- |
| - |
2 x addressable LED strip headers |
- |
| - |
2 x RGB LED strip headers |
- |
| - |
3 x M.2 Socket 3 connectors |
- |
| - |
6 x SATA 6Gb/s connectors |
- |
| - |
1 x front panel header |
- |
| - |
1 x front panel audio header |
- |
| - |
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
- |
| - |
1 x USB 3.2 Gen 1 header |
- |
| - |
2 x USB 2.0/1.1 headers |
- |
| - |
2 x Thunderbolt™ add-in card connectors |
- |
| - |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
- |
| - |
1 x serial port header |
- |
| - |
1 x reset button |
- |
| - |
1 x Q-Flash Plus button |
- |
| - |
1 x reset jumper |
- |
| - |
1 x Clear CMOS jumper |
- |

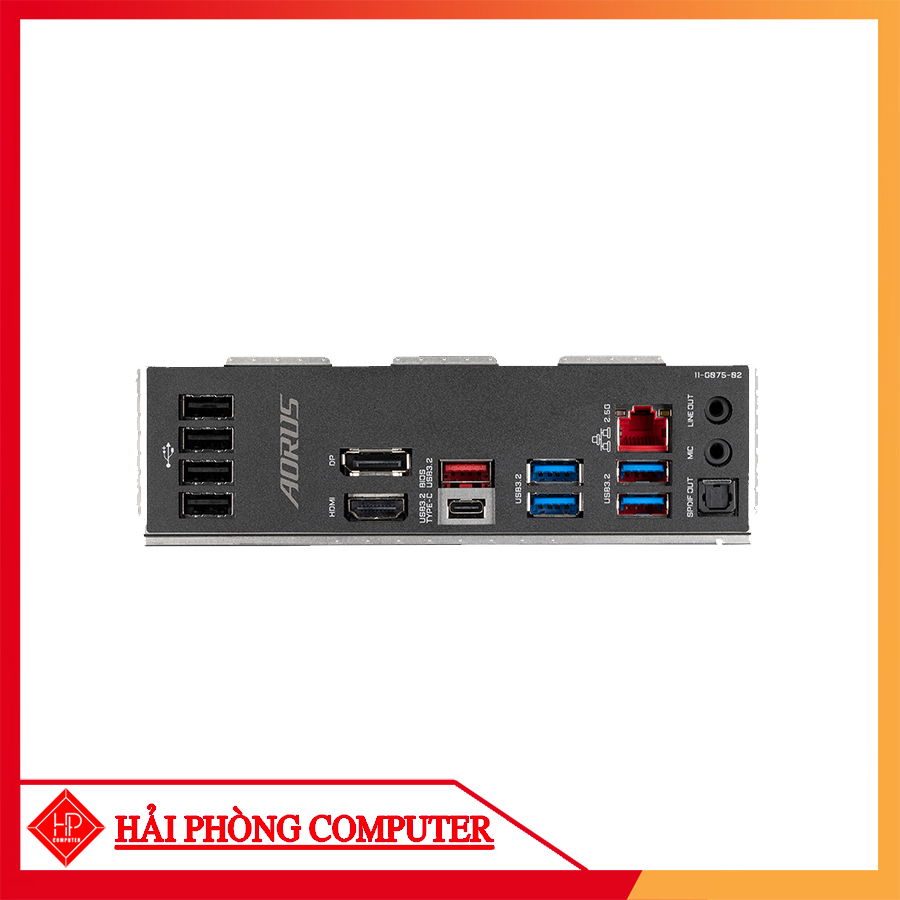

| Cổng kết nối (Back Panel) |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
- |
| - |
1 x USB 3.2 Gen 2 Type-A port (red) |
- |
| - |
4 x USB 3.2 Gen 1 ports |
- |
| - |
4 x USB 2.0/1.1 ports |
- |
| - |
1 x HDMI port |
- |
| - |
1 x DisplayPort |
- |
| - |
1 x RJ-45 port |
- |
| - |
1 x optical S/PDIF Out connector |
- |
| - |
2 x audio jacks |
- |
| LAN / Wireless |
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
- |

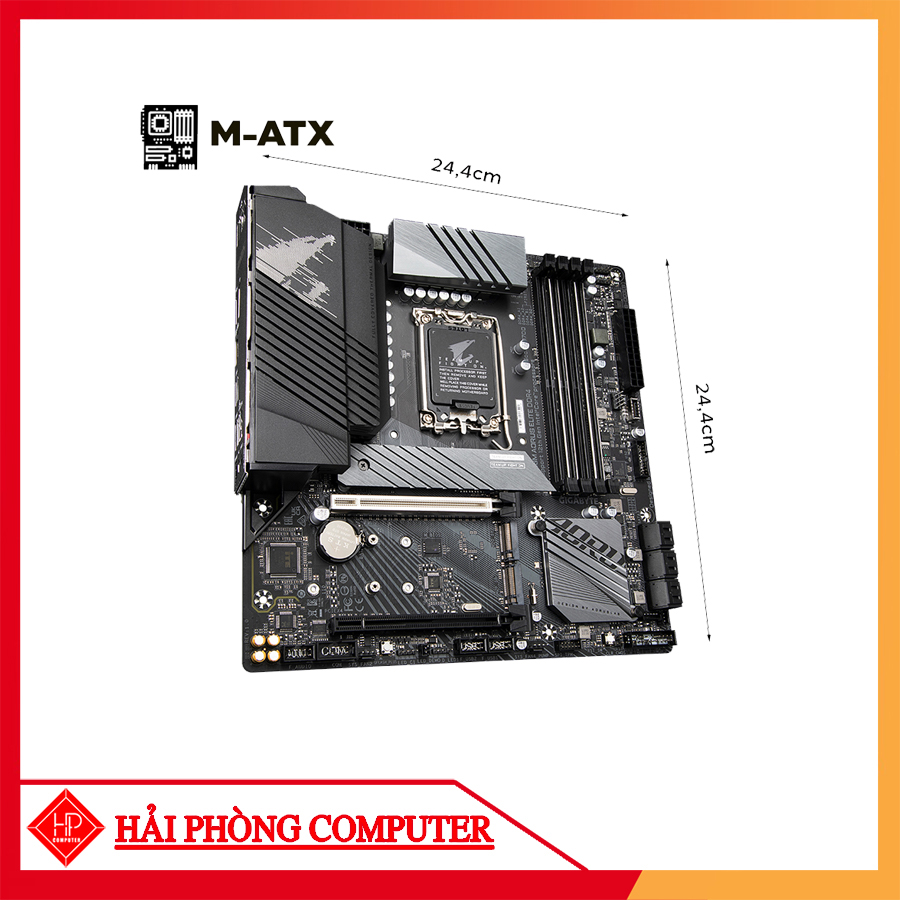

| Kích cỡ |
Micro ATX Form Factor; 24.4cm x 24.4cm |
- |
